Tufftruk Ltd > BENDie EB800PTP (Mid Tip) Electric Dumpers 800kg

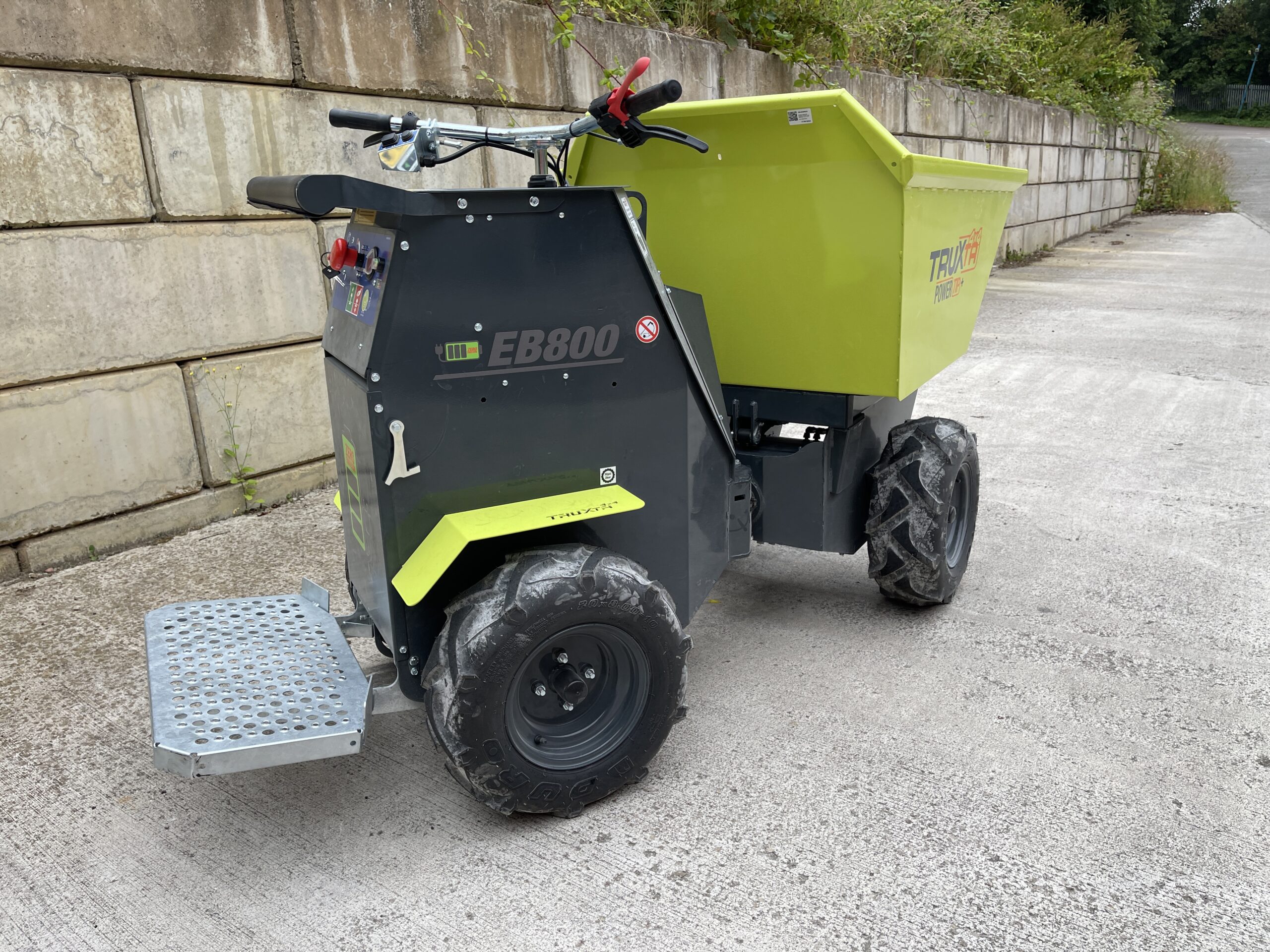

EB800PTP TRUXTA - Articulated 'Stand-On' (Mid Tip) Battery Powered
4x4 mini dumper that provides maximum versatility and light touch operation.
The EB800PTP has great payload to machine weight ratio - 800kg payload, 550kg machine. Offering excellent load capacity (Tipping at 960mm) and productivity.
The EB800PTP has a regenerative-braking system to help the slow down when stopping; this generates power into battery pack, to increase efficiency and range. That provides maximum versatility and light touch operation.
Ask A Question? Find Your Local Dealer
Advantages
Specifications

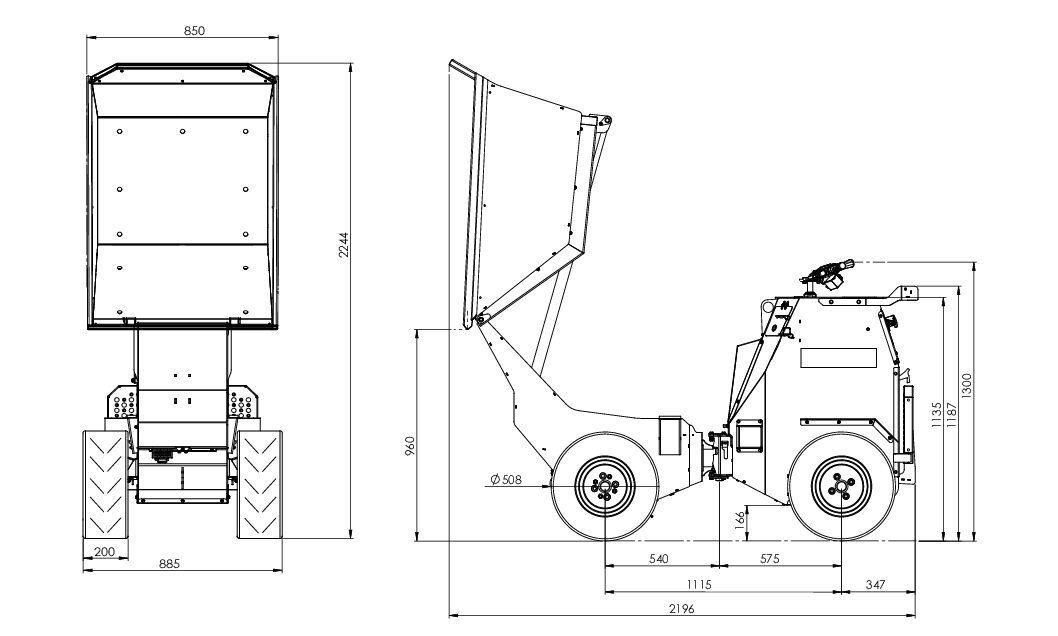

Dimensions
Attachments
Media & Downloads
- Battery powered driveline, with hydraulic power tipping, fast tipping cycle.
- Mid Tip Height 960mm
- Maximum manoeuvrability - articulated chassis design.
- Zero emissions.
- Regenerative-braking system.
- Quiet for noise sensitive environments.
- The well balanced robust unit fits through typical doorways (885mm - 3ft).
- Easily transportable from site to site, and compact enough to store.
- It’s the patented ‘steering pivot drive system’ that provides ultimate manoeuvrability in a compact size.
- Massive 800kg skip capacity and flotation tyres fitted as standard.
- Robust heavy duty construction and a well balanced skip means the TRUXTA is built for all sorts of materials and tough terrains.
- The fail-safe dead-man brake system.
- 4x4 drive system.
| Model | Battery EB800 (4x4) 'Stand-On' |
|---|---|
| Motor/Power (kw) | DC Motor 2 x 1400w /24v |
| Power Type | 4 x 6v AGM Batteries |
| Max Payload (Sand) | 800kg / 1800lbs / 15.5 ft3 / 0.43m3 |
| Payload Concrete | 720kg / 1600lbs / 12.5 ft3 / 0.35m3 |
| Unladen / Weight | 550kg / 1212Ibs |
| Working Width | 894mm (3ft) |
| Tip Height | 960mm |
| Working Gradient | 10° Constant Use / 15° Intermittent Use |
| Drive & Controls | 2 x 24v Transaxle |
| Brake System | Electrically operated brake system with fail-safe dead-man handle |
| Standard Fitment Tyres |
Flotation with option of turf tyres |
| Forward Travel Reverse Travel |
4 kph / 2.5 mph 2.5 kph / 1.5mph |
| Noise Level (dB) | <82 |
